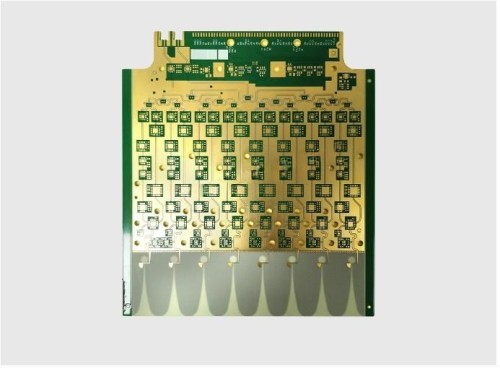

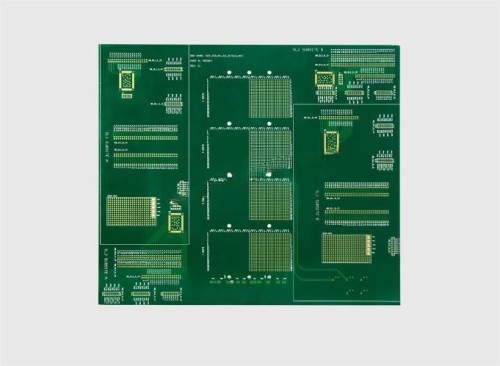

Twenty-four Layer Pcb Circuit Board&pcba

Description:

Layer number: 24 layer process: gold sinking minimum drilling: 0.3mm minimum line width: 0.1mm minimum line distance: 0.1mm

Features: high thermal conductivity, fast heat dissipation, in order to ensure product quality, starting from raw materials, the substrate selected Shengyi/Jiantao grade military materials, Sun ink, etc.......

High assembly density, small size, light weight Due to high assembly density, fewer connections between components (including components), thus improving reliability; The number of wiring layers can be increased, thus increasing the design flexibility; Can form a circuit with a certain impedance; Can form high-speed transmission circuit; The circuit and magnetic circuit shielding layer can be set, and the metal core cooling layer can be set to meet the needs of special functions such as shielding and cooling. Easy installation and high reliability
