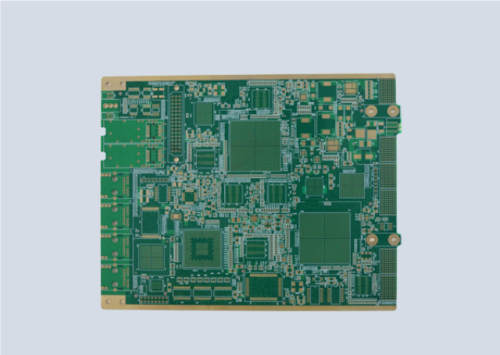

Industrial Control Equipment 8-layer PCB Circuit Board&pcba
Description:
Layer number: 8 layer process: gold sinking minimum drilling hole: 0.35mm minimum line width: 0.75mm minimum line distance: 0.75mm
Features: high thermal conductivity, fast heat dissipation, in order to ensure product quality, starting from raw materials, the substrate selected Shengyi/Jiantao grade military materials, Sun ink, etc.......
Industrial control refers to industrial automation control, mainly through the combination of electrical, electronic, mechanical and software to achieve. It is industrial control or factory automation control. It mainly refers to the use of computer technology, microelectronics technology, electrical means to make the production and manufacturing process of the factory more automated, efficient, accurate, and controllable and visible.
Industrial pcb circuit board:
1. Special or general circuit board for industrial control, the underlying circuit is done, reserved for IO, after buying the industrial circuit board, the input and output ports reserved on the circuit board are connected to the users own devices, such as motors, solenoid valves, sensors to complete the functions they want to complete.
2. There are special circuit boards and general circuit boards. A special circuit board is a board specially designed for a certain function, such as a temperature control circuit board, after buying it back, the input port is connected to a thermocouple, the output port is connected to a heating contactor or a solid state relay to control the heating device to complete temperature control, and the flow control board, motion control board and so on
3. General control board, most can be programmed, after the users own secondary development, to complete specific functions, a wide range of uses, such as plc is a general industrial control board, the user writes a program to compile input, you can complete a variety of functions, digital input, analog input port, high-speed counting port, digital output, analog output port, Some also have communication functions.
